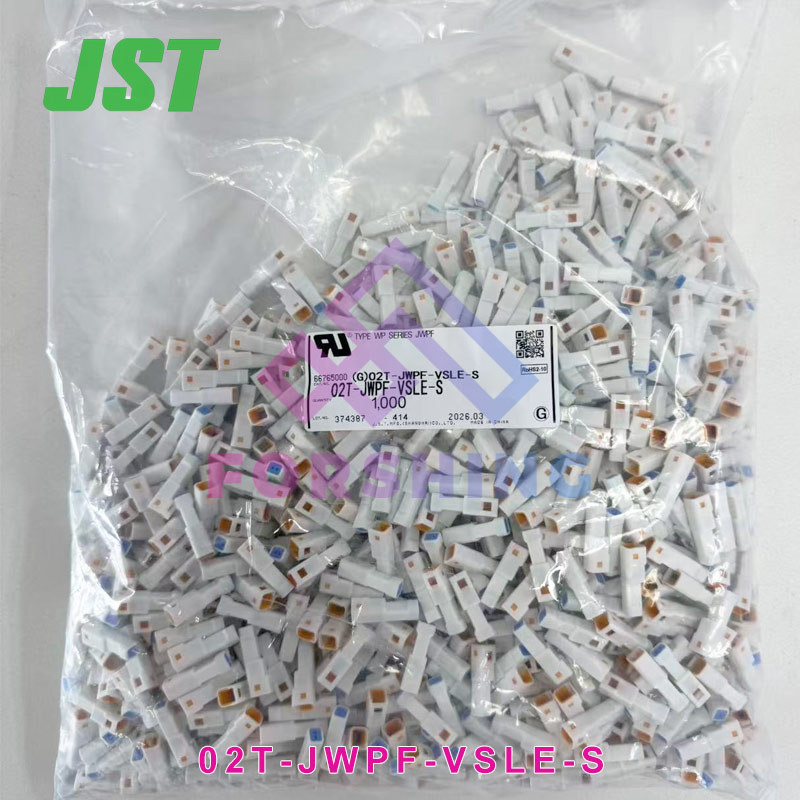

JST 02T-JWPF-VSLE-S 2-Pin JWPF Waterproof Male Plug Housing, 2mm Pitch
Manufacturer:JST
Brand： JST
Series： JWPF
Part Number： 02T-JWPF-VSLE-S
Product Type： Waterproof Wire-to-Wire Connector Housing
Connector Type： Male Plug / Tab Housing
Number of Positions： 2
Number of Rows： 1
Pitch： 2.0 mm
Termination： Crimp
Mounting Type： Cable Mount / Free Hanging
Locking Type： Latch Lock
Rated Current： 3A
Rated Voltage： 100V AC/DC
Operating Temperature： -40°C to +85°C
Housing Material： PBT
Flammability Rating： UL94V-0
Housing Color： Natural / White
Contact Type： Tab Contact
Applicable Contact： SWPT-001T-P025
Applicable Wire Size： AWG 22–26
Cable Outer Diameter： Approx. 1.4–1.6 mm
Waterproof Rating： IPX7
Mating Connector
Mating Connector： JST 02R-JWPF-VSLE-S
The JST 02T-JWPF-VSLE-S is a 2-position male plug housing from JST’s JWPF waterproof connector series. It is designed for compact wire-to-wire connections where space efficiency and water resistance are required.
The connector features a 2.0mm contact pitch, straight cable mounting and crimp termination. The housing is made from PBT material with UL94V-0 flammability rating and is supplied in natural/white color. JST’s official JWPF documentation identifies this model as the 2-circuit tab housing, paired with the corresponding 02R-JWPF-VSLE-S receptacle housing.
