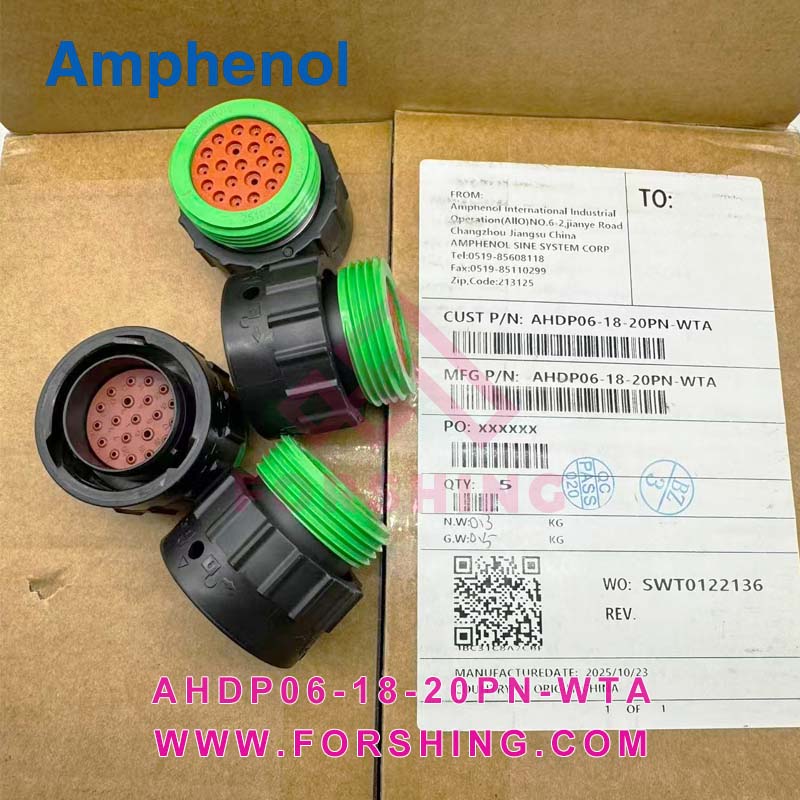

AHDP06-18-20PN-WTA

Brand: AMPHENOL
Original model: AHDP06-18-20PN-WTA
Shell Size: 18
No. of Positions: 20
Contact Size(s): 16,20
Contacts Included: No
Contact Type (Pin/Socket): Pin
Gender: Male (Reversed)
Wire Range: 16-22 AWG (1.5-0.5mm²), 14-20 AWG (2.0-0.5mm²)
Housing Material: Thermoplastic
Voltage Rating: 250V
Shape: Circular
Color: Black
IP Rating: IP67 & IP69k (in mated condition)
Operating Temperature: -55°C to +125°C
Seal Material: Silicone Rubber
Seal Diameter: 1.02mm (.040″) – 2.10mm (.083″) / 2.54mm (.100″) – 3.40mm (.134″)
Seal Color: Red
Rear Seal Type: Normal Diameter Seal
Dielectric Value: Dielectric withstanding voltage: less than 2 mlliamps current leakage @ 1500 volts AC
Insulation Resistance: 1000 megohms at 25°C
Mating Cycle Durability: >100
RoHS Compliant: Yes
Mating Part(s)*: AHDP04-18-20S* & ​​AHDP02-18-20S*
