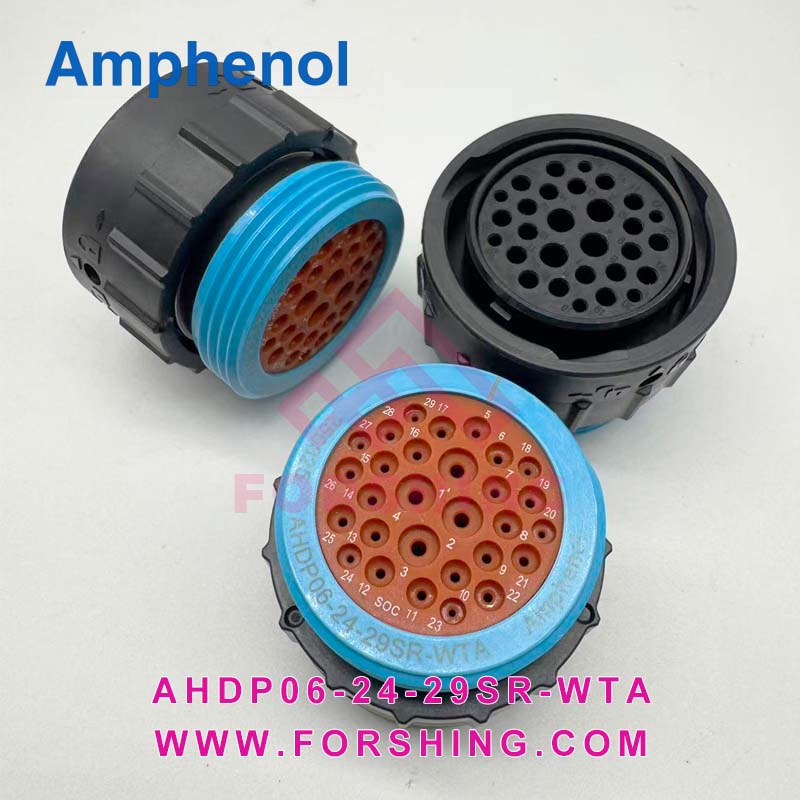

AHDP06-24-29SR-WTA

Original Part Number: AHDP06-24-29SR-WTA
Description: 29 POSITION PLUG, SOCKET SHELL SIZE 24, REDUCED DIAMETER SEAL (BLUE), WIDE THREAD ADAPTER. COMPARABLE TO PN# HDP26-24-29SE-L024
Shell Size: 24
No. of Positions: 29
Contact Size(s): 12,16,20
Contacts Included: No
Contact Type (Pin/Socket): Socket
Gender: Female (Standard)
Wire Range: 16-22 AWG (1.5-0.5mm²), 14-20 AWG (2.0-0.5mm²), 10-14 AWG (6.0-2.0mm²)
Voltage Rating: 250V
IP Rating: IP67 & IP69k (in mated condition)
Operating Temperature: -55°C to +125°C
Dielectric Value: Dielectric withstanding voltage: less than 2 mlliamps current leakage @ 1500 volts AC
Insulation Resistance: 1000 megohms at 25°C
Mating Cycle Durability: >100
RoHS Compliant: Yes
Mating Part(s)*: AHDP04-24-29P* & AHDP02-24-29P*
