Amphenol HVSL364024A 4-Pole High Voltage Receptacle, A-Key, 1000V
Manufacturer:Amphenol
Brand： Amphenol PCD Shenzhen / Amphenol
Series： HVSL 364
Part Number： HVSL364024A
Connector Type： Male Receptacle
Number of Positions： 4
Key Coding： A-Key / A-Coded
HVIL： Yes
Shielding： Yes
IP Rating： IP67, mated
Wire Size： 2.5–6 mm²
Wire Gauge： Approximately 10–14 AWG
Operating Temperature： -40°C to +125°C
Maximum Mating Cycles： 50
Housing Material： PA66, UL94-V0
Contact Finish： Tin Plated
Color： Orange
RoHS： Yes
Contacts Included： No, contacts must be ordered separately
Mating Part Number： HVSL364064A1061

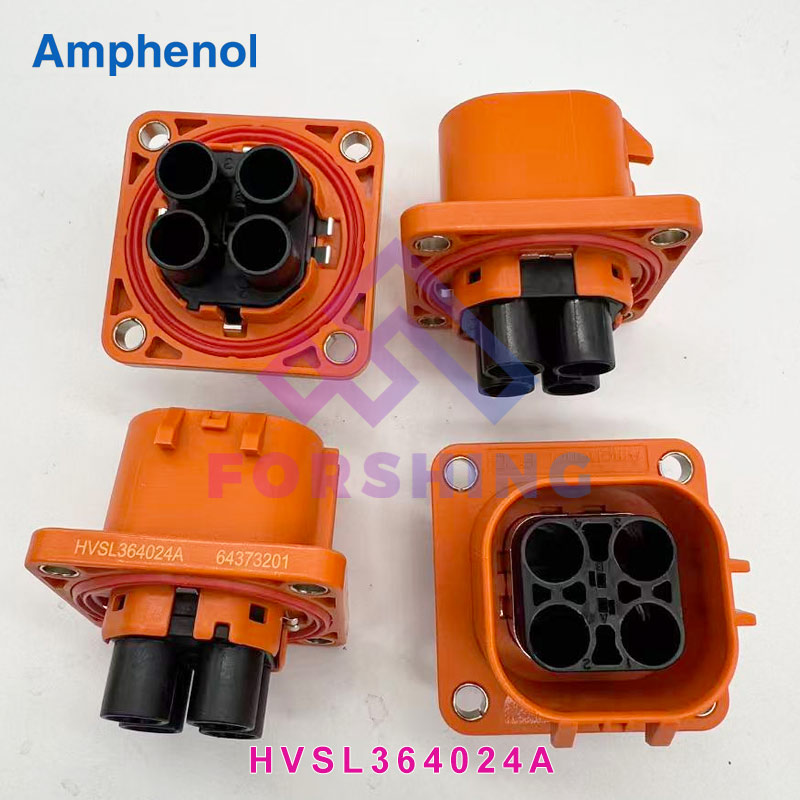

The HVSL364024A is an Amphenol PCD Shenzhen HVSL 364 Series 4-pole box-mount receptacle designed for high-voltage electrical systems. It uses an A-coded mechanical key, male pin contacts and crimp termination.
The connector is rated for 1000V AC/DC and provides IP67 protection when mated. It also incorporates a High Voltage Interlock (HVIL) for monitoring the integrity of the high-voltage connection. The connector supports 2.5–6 mm² wiring and operates from -40°C to +125°C.
