Amphenol RT061619SNHEC03 19-Position Female Circular Connector Plug
Manufacturer:Amphenol
Brand：Amphenol Sine Systems
Part Number：RT061619SNHEC03
Series：EcoMate RM / RT Series
Product Type：Circular Connector
Connector Type：Female Plug
Number of Positions：19
Gender：Female
Wire Range：14–26 AWG
Rear Connector Type：End Cap
Locking System：Bayonet Lock
Protection Rating：IP67 (Mated)
Operating Temperature：-40°C to +125°C
Housing Material：Zinc Alloy
Shell Finish：Nickel Plated
Mating Cycle Durability：500 Cycles
Mating Connector：RT001619PNH* / RT071619PNH*

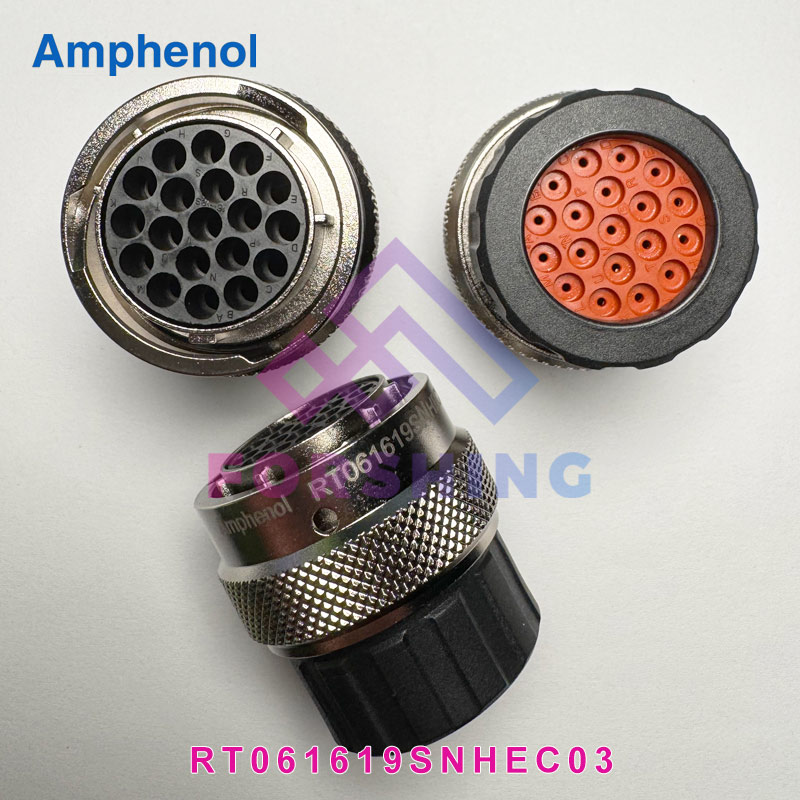

Amphenol RT061619SNHEC03 19-Position Female Circular Connector
The Amphenol RT061619SNHEC03 is a 19-position female circular connector plug from the EcoMate RM / RT Series, designed for demanding industrial, automotive, EV and electrical applications.
The connector features a size 16 shell and 19 socket contacts. It includes a silicone seal and end cap with individual rear wire sealing, providing environmental protection for cable assemblies. The connector uses a bayonet locking system and achieves IP67 protection when mated.
