Aptiv 12089290 Metri-Pack 150 Female Terminal, Tin Plated, 20–22 AWG
Manufacturer:APTIV
Brand： Aptiv / Delphi
Original Part Number： 12089290
Product Type： Automotive Female Terminal
Series： Metri-Pack 150
Terminal Type： Female Receptacle / Socket
Termination： Crimp
Mounting Type： Cable Mount / Free Hanging
Contact Material： Copper Alloy
Contact Plating： Tin
Wire Size： 20–22 AWG
Cross Section： Approx. 0.35 mm²
Maximum Current Rating： 14A
Operating Temperature： -40°C to +125°C
Insulation Diameter： Approx. 1.80–2.10 mm

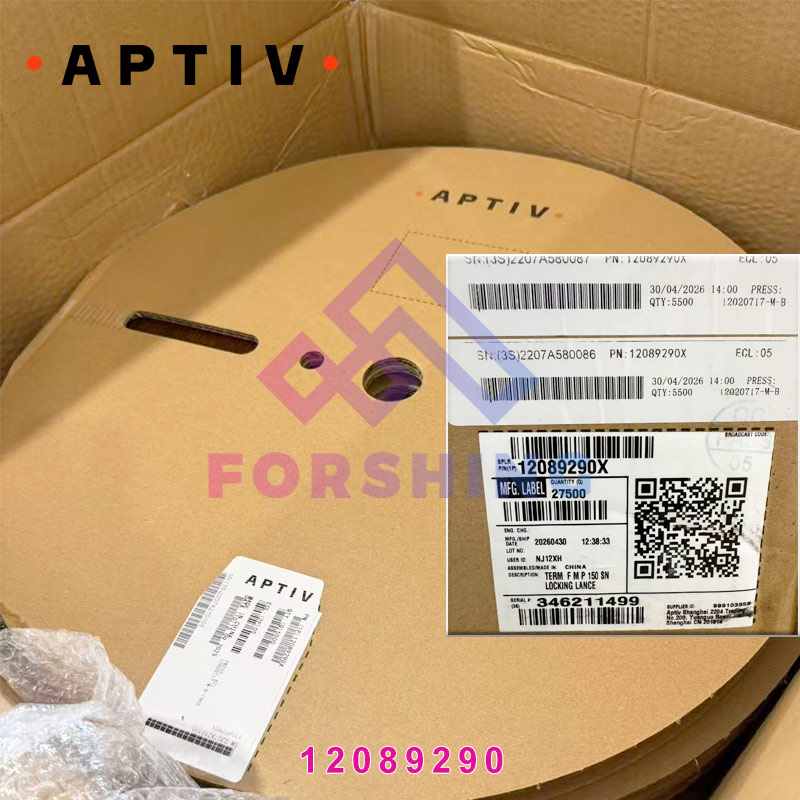

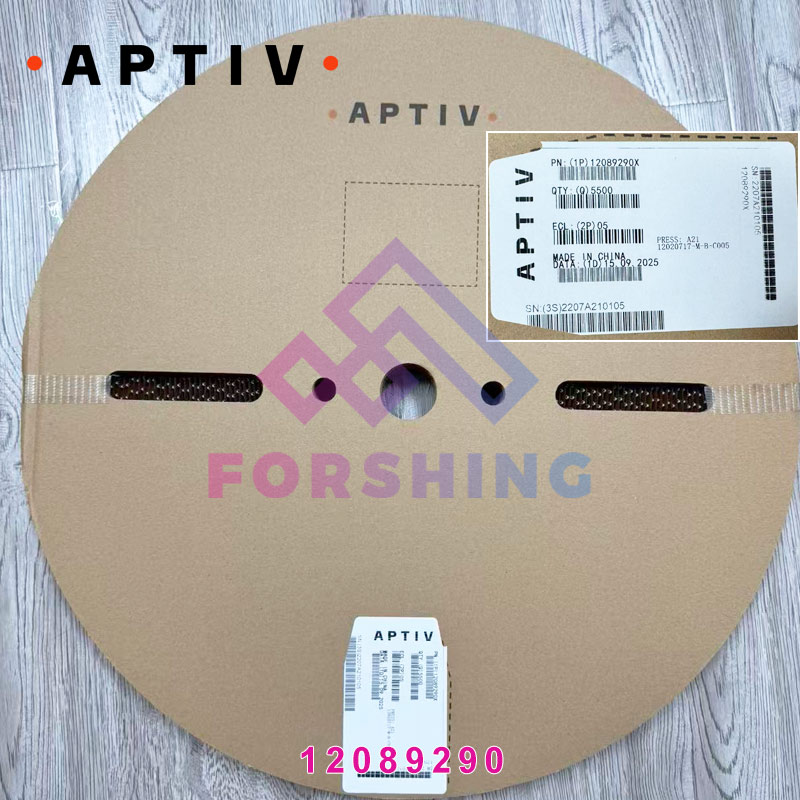

Packaging： Reel
Standard Reel Quantity： 5,000 pcs
The Aptiv 12089290 is a female receptacle terminal from the Metri-Pack 150 family, formerly manufactured under Delphi Connection Systems. It is designed for cable-mounted automotive connector assemblies and uses a crimp termination.
The terminal features a tin-plated copper-alloy construction and is suitable for 20–22 AWG wire. Distributor specifications list a maximum current rating of 14A and an operating temperature range of -40°C to +125°C.
