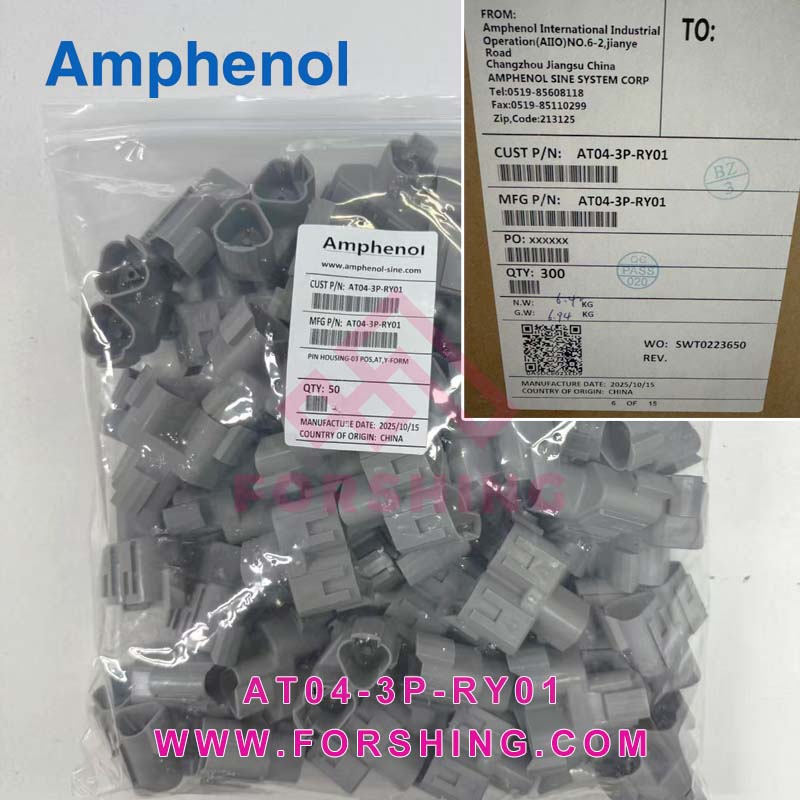

AT04-3P-RY01

Brand: AMPHENOL
Original model: AT04-3P-RY01
No. of Positions: 3
Contact Size: 16
Amperage: 13A
Contacts Included: No
Contact Type (Pin/Socket): Pin
Gender: Male
Wire Range: 14-20 AWG (2.0-0.5mm²)
Housing Material: Thermoplastic
Voltage Rating: 250V
Shape: triangular
Color: Gray
IP Rating: IP67 (in mated condition)
Operating Temperature: -55°C to +125°C
Seal Material: Silicone Elastomer
Mating Cycle Durability: >100
RoHS Compliant: Yes
Wedge Part#: Wedglock AW3P included
Mating Part(s)*: AT06-3S* Plug
Dielectric Value: Dielectric with standing voltage less than 2 milliamps current leakage @ 1500 volts AC
