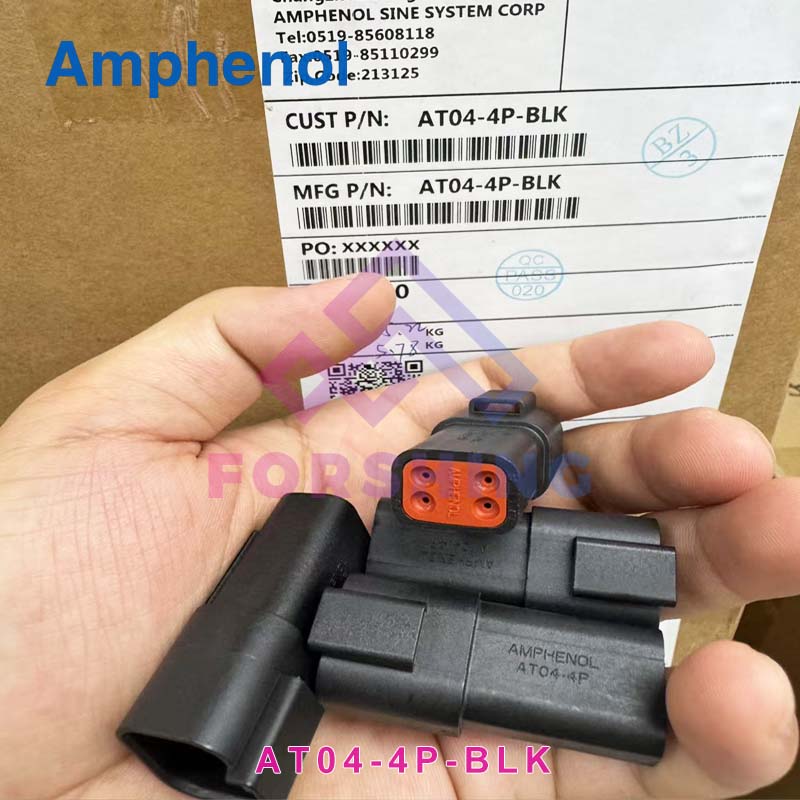

AT04-4P-BLK

Original model: AT04-4P-BLK
No. of Positions: 4
Contact Size: 16
Amperage: 13A
Contacts Included: No
Contact Type (Pin/Socket): Pin
Gender: Male
Wire Range: 14-20 AWG (2.0-0.5mm²)
Housing Material: Thermoplastic
Voltage Rating: 250V
Shape: Rectangular
Color: Black
IP Rating: IP67 (in mated condition)
Operating Temperature: -55°C to +125°C
Seal Material: Silicone Elastomer
Seal Diameter: 2.24mm (.088″) – 3.68mm (.145″)
End Cap/Rear Seal Dimensions: .088″ – .145″
Mating Cycle Durability: >100
RoHS Compliant: Yes
Wedge Part#: AW4P
Mating Part(s)*: AT06-4S* Plug
Dielectric Value: Dielectric with standing voltage less than 2 milliamps current leakage @ 1500 volts AC
