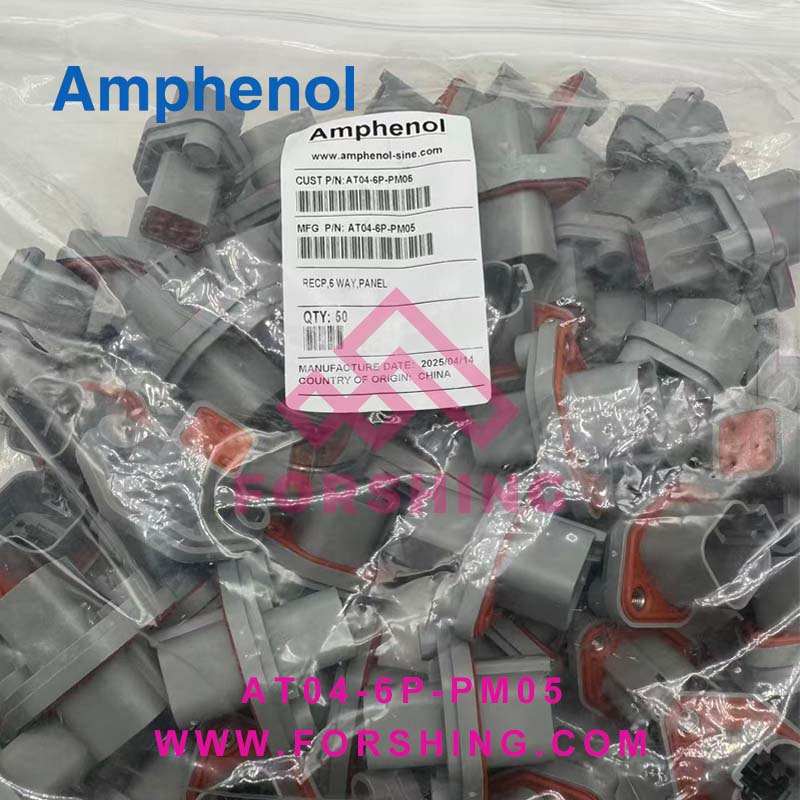

AT04-6P-PM05

PART NUMBER: AT04-6P-PM05
Description：6-Way Flange Mount Receptacle with Gasket, Pin, Threaded. Comparable to PN# DT04-6P-CL09
Contact Size: 16
Amperage: 13A
Contacts Included: No
Contact Type (Pin/Socket): Pin
Gender: Male
Wire Range: 14-20 AWG (2.0-0.5mm²)
Housing Material: Thermoplastic
Voltage Rating: 250V
Shape: Rectangular
Color: Grey
IP Rating: IP67 (in mated condition)
Operating Temperature: -55°C to +125°C
Seal Material: Silicone Rubber
Seal Diameter: 2.24mm (.088″) – 3.68mm (.145″)
Mounting Style: Panel Mount
Mating Cycle Durability: >100
RoHS Compliant: Yes
Wedge Part#: AW6P
Mating Part(s)*: AT06-6S* Plug
Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
