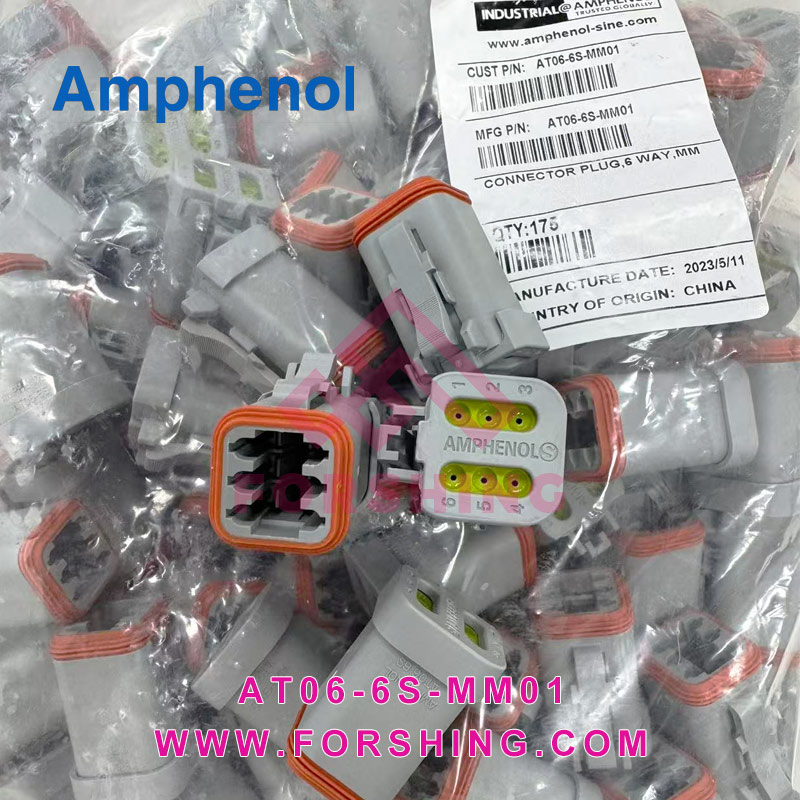

AT06-6S-MM01

Brand: AMPHENOL
Original Model Number: AT06-6S-MM01
Description：6-Way Plug, Female Connector with Reduced Diameter Seal (E-Seal) and End Cap, Grey.
Comparable to PNs# DT06-6S-CE01, 934454102
No. of Positions: 6
Contact Size: 16
Amperage: 13A
Contacts Included: No
Contact Type (Pin/Socket): Socket
Gender: Female
Wire Range: 14-20 AWG (2.0-0.5mm²)
Housing Material: Thermoplastic
Voltage Rating: 250V
Shape: Rectangular
Color: Grey
IP Rating: IP67 (in mated condition)
Operating Temperature: -55°C to +125°C
Seal Material: Silicone Elastomer
Seal Diameter: 1.35mm (.053″) – 3.05mm (.120″)
End Cap/Rear Seal Dimensions: .053″ – .120″
Mating Cycle Durability: >100
RoHS Compliant: Yes
Wedge Part#: AW6S
Mating Part(s)*: AT04-6P* Receptacle
Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts A
