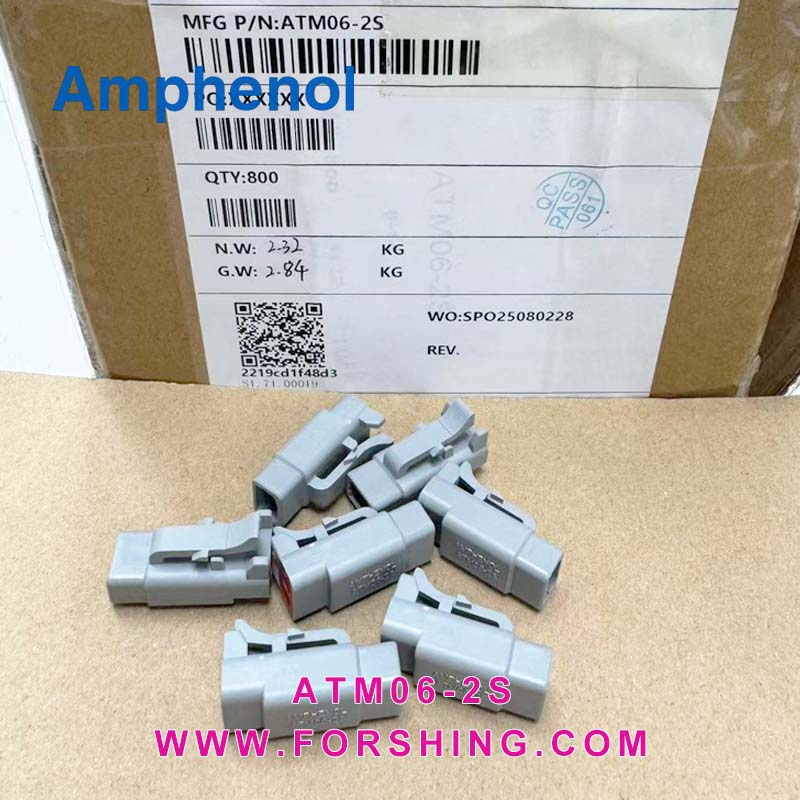

ATM06-2S

Original Model: ATM06-2S
Description：2-Way Plug, Female. Comparable to PN# DTM06-2S
No. of Positions: 2
Contact Size: 20
Amperage: 7.5A
Contacts Included: No
Contact Type (Pin/Socket): Socket
Gender: Female
Wire Range: 16-22 AWG (1.5-0.35mm²)
Housing Material: Thermoplastic
Voltage Rating: 250V
Shape: Rectangular
Color: Grey
IP Rating: IP67 (in mated condition)
Operating Temperature: -55°C to +125°C
Seal Material: Silicone Elastomer
Seal Diameter: 1.35mm (.053″) – 3.05mm (.120″)
Mating Cycle Durability: >100
RoHS Compliant: Yes
Wedge Part#: AWM-2S
Mating Part(s)*: ATM04-12PD* Receptacle
Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
