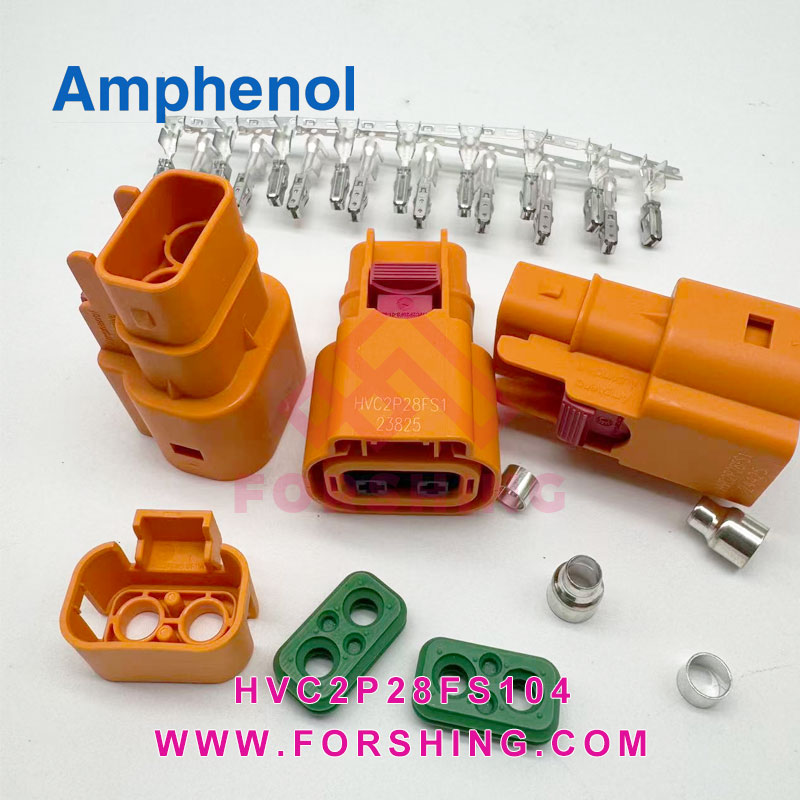

HVC2P28FS104

Brand: AMPHENOL
Original model: HVC2P28FS104
Part-No.:Plug:
HVC2P28FSX02 (2.5mm² Shield)
HVC2P28FSX04 (4.0mm² Shield)
HVC2P28FSX05 (5.0mm2 Shield)
Socket:
HVC2P28MVX02 (2.5mm² Unshield)
HVC2P28MVX04 (4.0mm² Unshield)
HVC2P28MVX05 (5.0mm² Unshield)
“X” indicates code 1/2/3/4/5/6
Mating design: Secondary locking
Terminal system: 0.8 x 2.8 mm,
Silver plated Wire size 2.5~5.0 mm²
HVIL contact system, 0.5mm²
Pull out force: ≤75N
Temperature range: – 40°C to +140°C
Voltage range: 900V DC
Mating cycles: 50 MIN
Rated current :
2.5mm² = 20A @ 85°C
4.0mm² = 30A @ 85°C
5.0mm² = 40A @ 85°C
Housing material: PA66-GF UL94 V-0
Terminal material:Cu alloy
