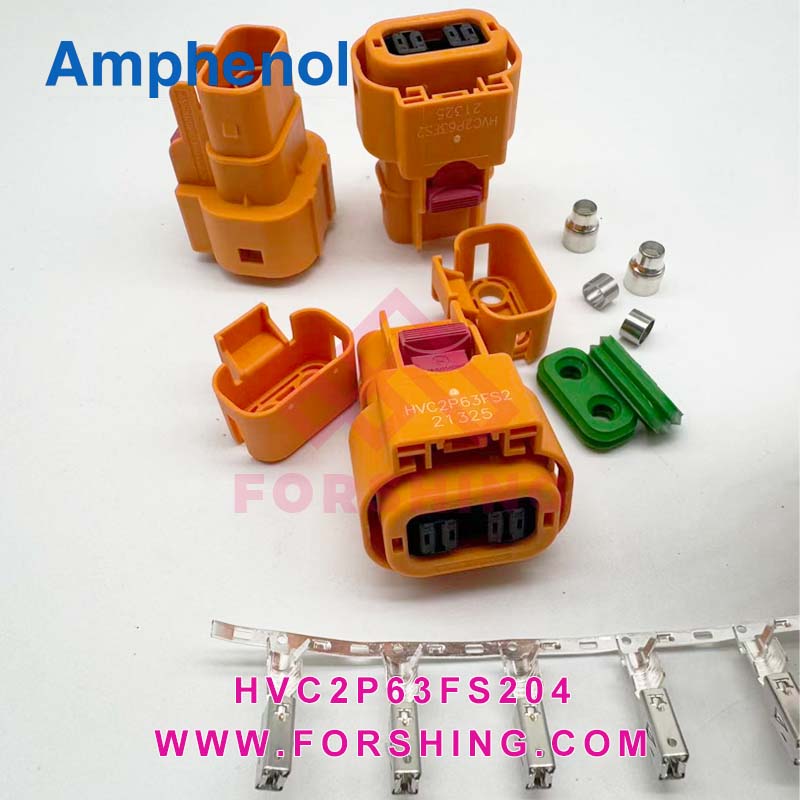

HVC2P63FS204

Brand: AMPHENOL
Original Model: HVC2P63FS204
Plug:
HVC2P63FSX02 (2.5mm² Ø 4.2-4.7mm)
HVC2P63FSX04 (4.0mm² Ø 5.3-5.8mm)
HVC2P63FSX05 (5.0mm² Ø 5.3-5.8mm)
HVC2P63FSX06 (6.0mm² Ø 6.0-6.5mm)
Socket:
HVC2P63MVX02 (2.5mm²)
HVC2P63MVX04 (4.0mm²)
HVC2P63MVX05 (5.0mm²)
HVC2P63MVX06 (6.0mm²)
“X” indicates 1/2/3/4. Corresponding Keys: A/B/C/D
Matching Design: CPA Confirmation Locking Structure;
Terminal Specifications: 0.8X6.3mm, Silver Plated
Compatible Wire Diameter: 2.5/4/6mm², Shielded
High Voltage Interlock Terminals

Performance Characteristics:
Pull-out Force: ≤100N
Operating Temperature Range: -40°C to +125°C
Maximum Rated Voltage: 1000V / DC
Number of Matches: Minimum 50 times
Maximum Operating Current:
2.5mm²=20A
4.0mm²=36A
5.0mm²=40A
6.0mm²=45A
