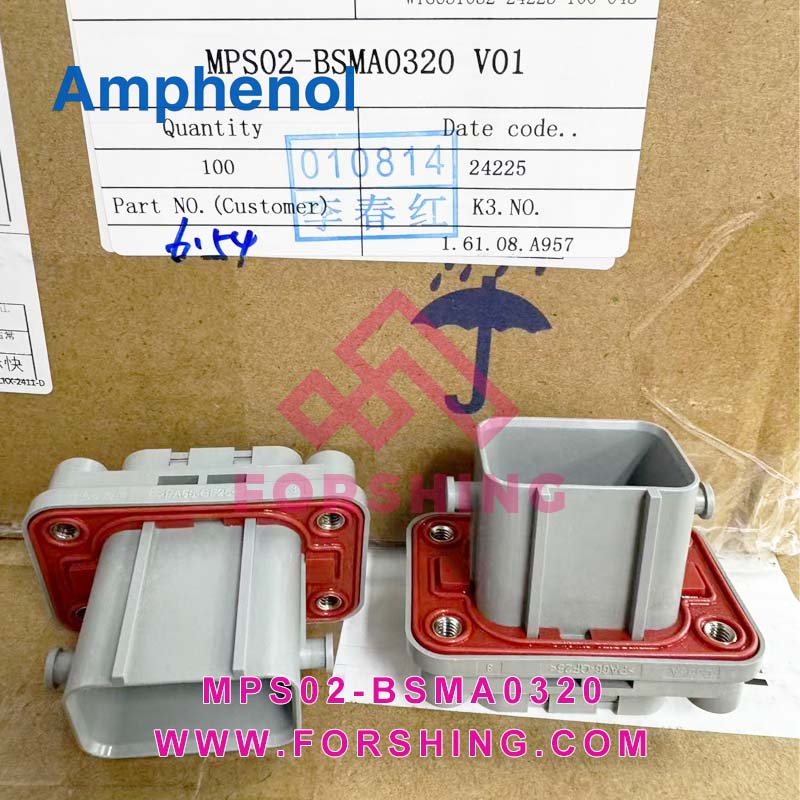

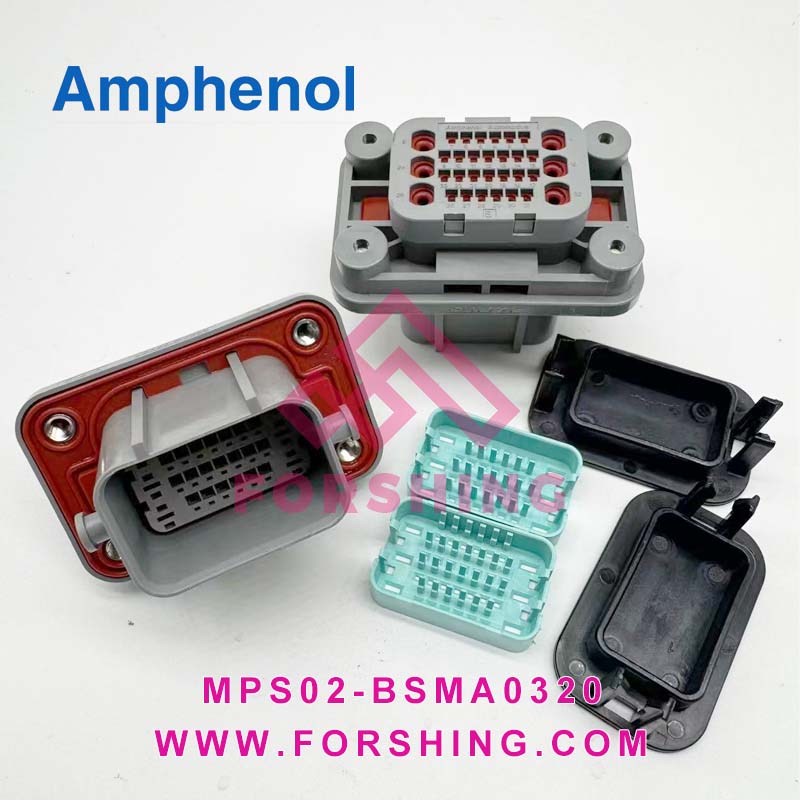

MPS02-BSMA0320

Part Number: MPS02-BSMA0320
Product Description: 32-pin low-voltage signal connector
Plug: MPS02-BSFX032S
Receptacle: MPS02-BSMX0320 (“X” indicates code A/B/C)
Secondary locking mechanism
IP68/IP6K9K waterproof
26 1mm signal contacts
6 2.8mm power contacts
Technical Parameters:
Temperature range: [-40°C to 125°C]
Protection rating: IP68/IP6K9K waterproof
Rated operating voltage: 250V
Contact resistance: <10 mΩ
Withstand voltage: 2000V
Insulation resistance: 1000M at 25°C
Mechanical life: 100 cycles
RoHS: Yes

Datasheet
