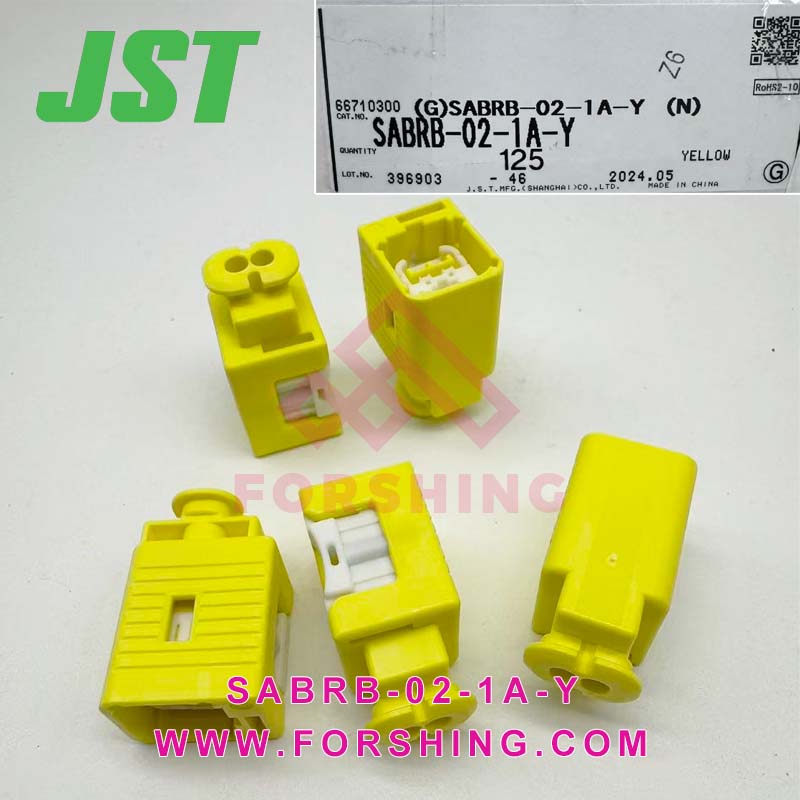

SABRB-02-1A-Y

Brand: JST
Original Model: SABRB-02-1A-Y
Description: 0.64mm individually sealed wire-to-wire connector with a rigid design and spring locking mechanism.

The spring force prevents partial engagement during mating and maintains a continuous and secure connection between the male and female sides.

Application: Automotive
Connector: Wire to wire
Family type: Spring lock type
Technology: Sealed
Current rating: 5A AC, DC
Temperature range: -40 to +80 Celsius degrees
Voltage rating: 14V AC, DC
Reference Packaging: 125/Box  1000/Carton=8.20KG DIM=52*35*18CM
Series: SAB Connector

Datasheet
