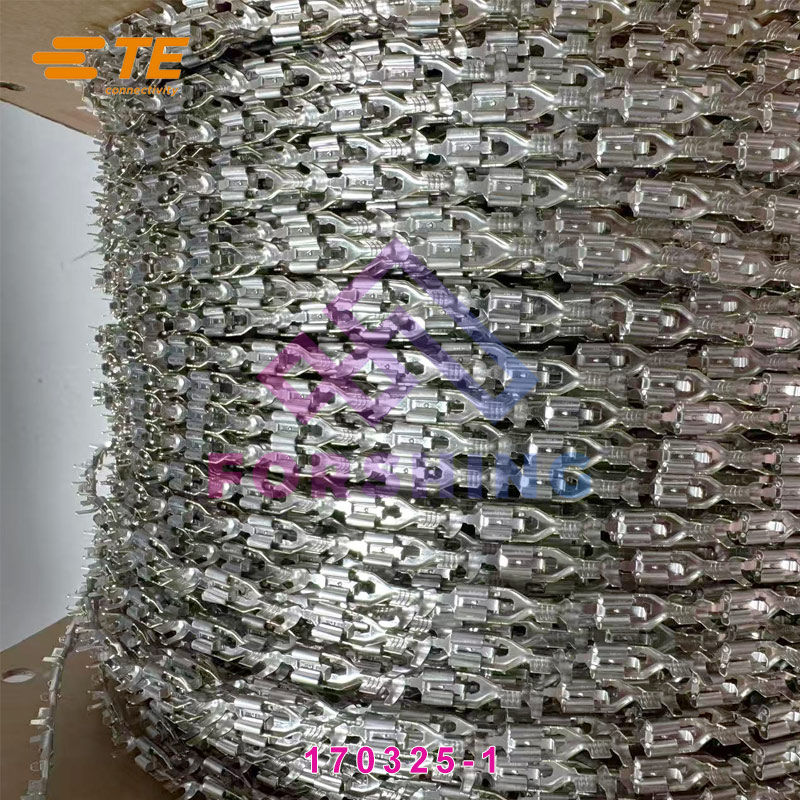

TE Connectivity 170325-1 Positive Lock 187 Female Quick Disconnect Terminal
Manufacturer:TE
Brand：TE Connectivity / AMP
Part Number：170325-1
Series：Positive Lock 187 / Mark II
Product Type：Quick Disconnect Receptacle Terminal
Terminal Type：Female / Receptacle
Wire Size：20–16 AWG
Wire Size：0.51–1.31 mm²
Compatible Insulation Diameter：1.9–3.4 mm
Termination：F-Crimp
Terminal Orientation：Straight
Base Material：Brass
Plating：Pre-Tin
Insulation：Uninsulated
Barrel Type：Open
Terminal Material Thickness：0.3 mm
Mounting Type：Free-Hanging / Cable Mount
Operating Temperature：-40°C to +110°C

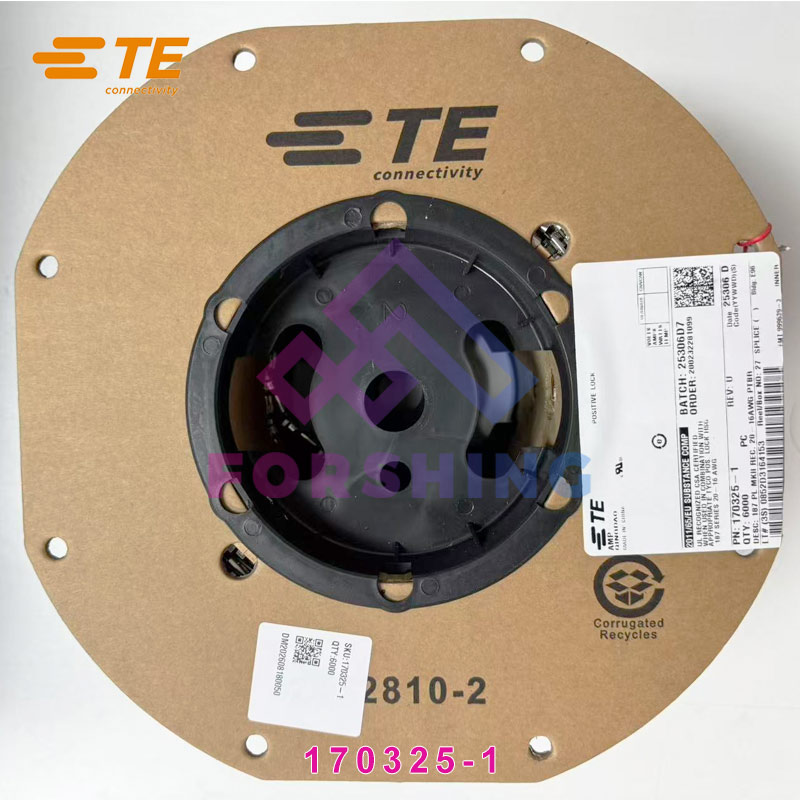

Packaging：Strip / Reel
Reference packaging: 6000/Reel, 18000/Box
Gross Weight: 9.16 kg
Dimensions: 52 x 29 x 29 cm
TE Connectivity 170325-1 Positive Lock 187 Female Terminal
The TE Connectivity 170325-1 is a Positive Lock 187 Series female quick disconnect terminal designed for reliable wire-to-tab electrical connections.
It is suitable for 20–16 AWG (0.51–1.31 mm²) wire and mates with a 4.75 mm (0.187 in) wide tab. The terminal is made from brass with pre-tin plating and uses an F-crimp termination.
