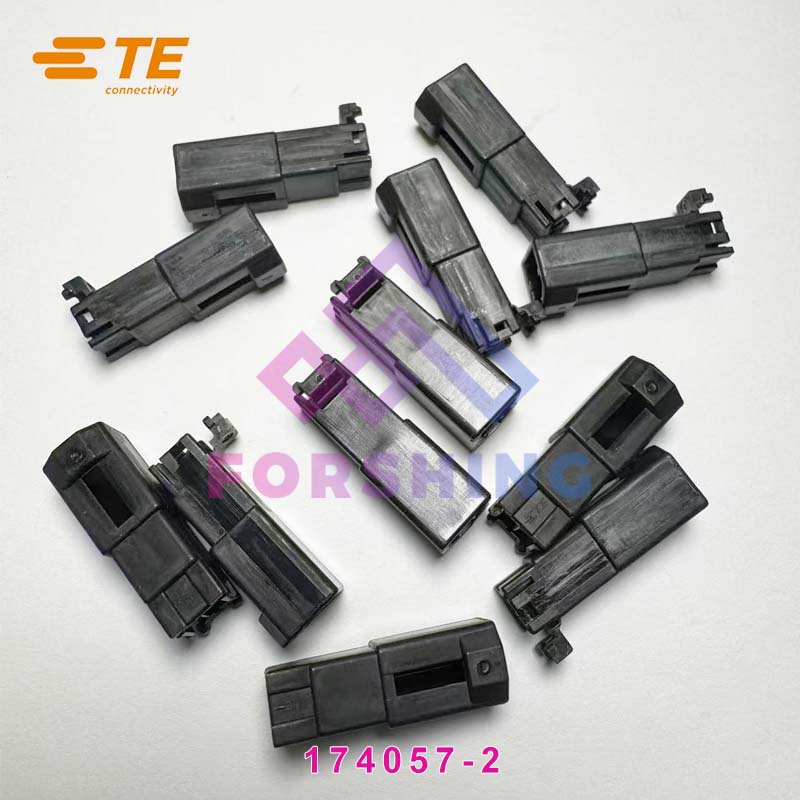

TE Connectivity 174057-2 MULTILOCK 040 2-Way Automotive Connector Housing

Brand：TE Connectivity / AMP
Part Number：174057-2
Series：MULTILOCK 040
Product Type：Connector Housing
Connector Type：Receptacle / Cap Housing
Number of Positions：2
Number of Rows：1
Application：Wire-to-Wire
Contact Size：1.0 mm (.040)
Pitch：2.6 mm
Housing Color：Black
Housing Material：PBT
Mounting Style：Free Hanging / Cable Mount
Termination：Crimp
Mating Tab Width：1.0 mm
Operating Temperature：-30°C to +105°C
Operating Voltage：12 VDC
Circuit Application：Signal
Sealing：Unsealed
TPA：Yes
CPA：No
UL Flammability Rating：UL 94-HB
RoHS：Compliant
ELV：Compliant
Mating Connector：TE 174056-2
