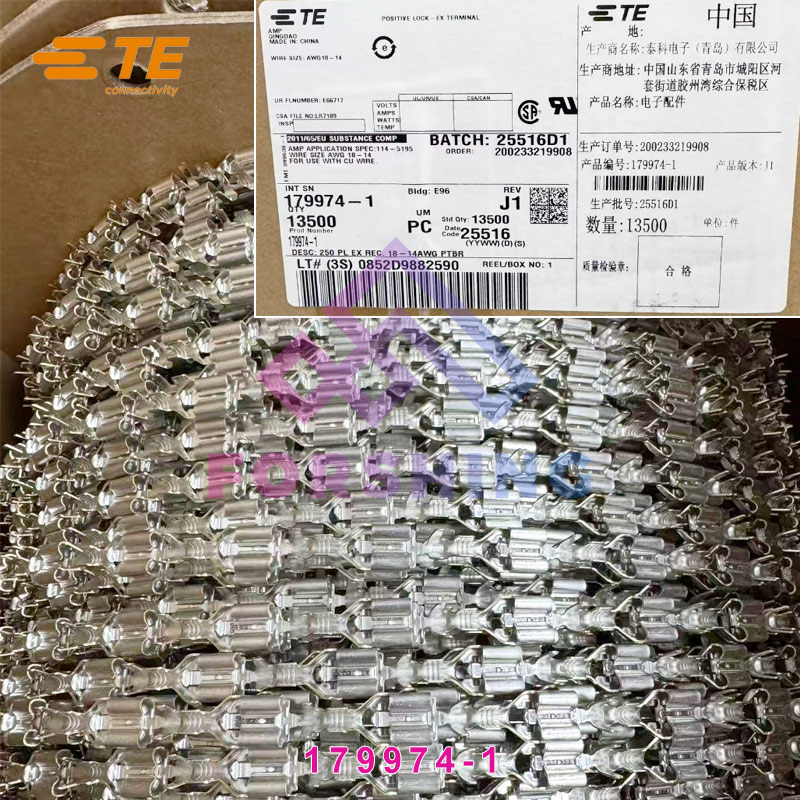

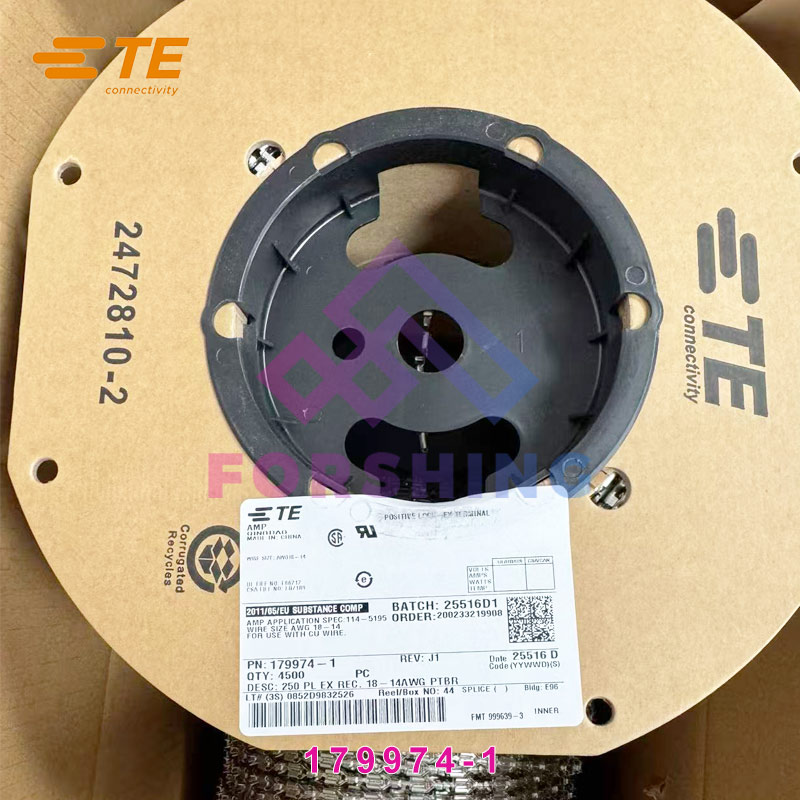

TE 179974-1 Positive Lock 250 Female Quick Disconnect Terminal, 18–14 AWG, 6.35mm
Manufacturer:TE
Brand: TE
Original Part Number: 179974-1
Category: Terminal
Description: Quick Disconnects, Receptacle, 18–14 AWG Wire Size, 0.82–2.08 mm² Wire Size, Mating Tab Width 6.35 mm [0.25 in], Straight, Brass, Positive Lock 250
Product Category: Quick Disconnect Terminal
Packaging: Strip, Reel
Series: Positive Lock 250
Contact Material: Brass
Contact Plating: Tin
Reference Packaging: 4,500/reel; 13,500 pcs/Box;
Dimensions: 51 × 28 × 28 cm= 12 kg;
The TE Connectivity 179974-1 is an uninsulated female quick disconnect receptacle terminal from the AMP Positive Lock 250 Series, designed for secure and reliable electrical connections in wire and cable assemblies.
The 179974-1 accommodates 18–14 AWG (0.82–2.08 mm²) wires and is designed to mate with 6.35 mm (0.250-inch) wide and 0.81 mm (0.032-inch) thick male tabs. Its straight configuration and open-barrel F-crimp termination provide an efficient connection solution for electrical wiring systems.
