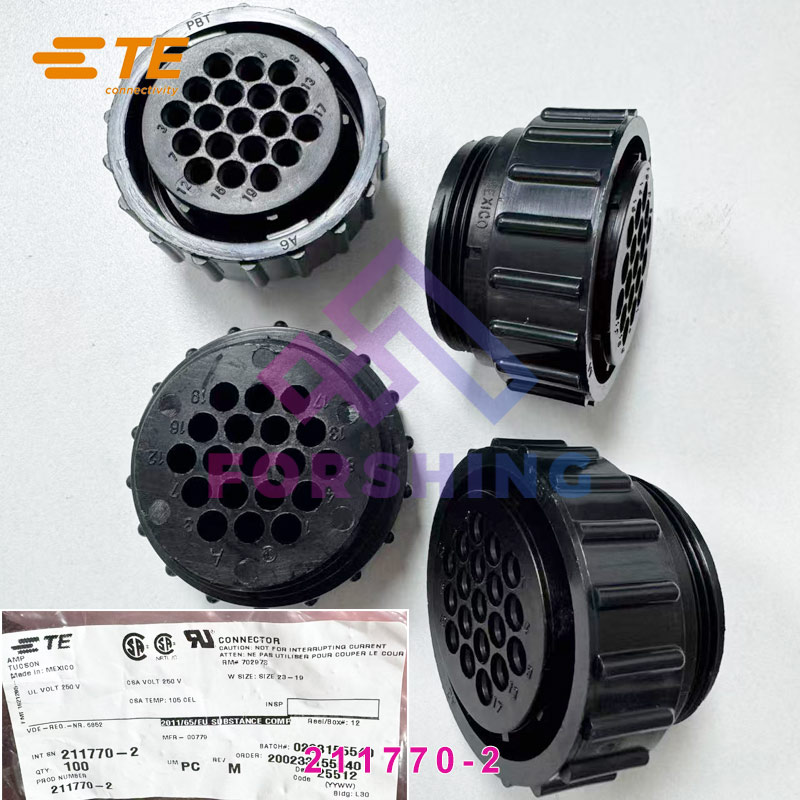

TE 211770-2 AMP CPC Series 1 19-Pin Circular Plug Housing, Shell Size 23

The TE Connectivity 211770-2 is a 19-position circular plastic plug housing from the AMP Circular Plastic Connector (CPC) Series 1 family.

Designed for wire-to-wire electrical connections, this connector features a shell size 23 housing, straight cable entry and a threaded coupling mechanism that provides secure mating retention. Its A-coded polarization and keyed alignment help ensure proper connector orientation.

The housing is manufactured from black Nylon 6/6 with a UL94 V-0 flammability rating. It supports operating voltages up to 600V AC/DC and temperatures ranging from -55°C to +105°C.

The 211770-2 accommodates 19 compatible Multimate socket contacts, allowing power and signal circuits to be incorporated into a single connector assembly. Its unshielded, non-sealed construction is intended for installations that do not require an environmental sealing rating.

The connector is supplied as a plug housing assembly without electrical contacts. Appropriate socket terminals and the corresponding mating receptacle must be selected separately.
