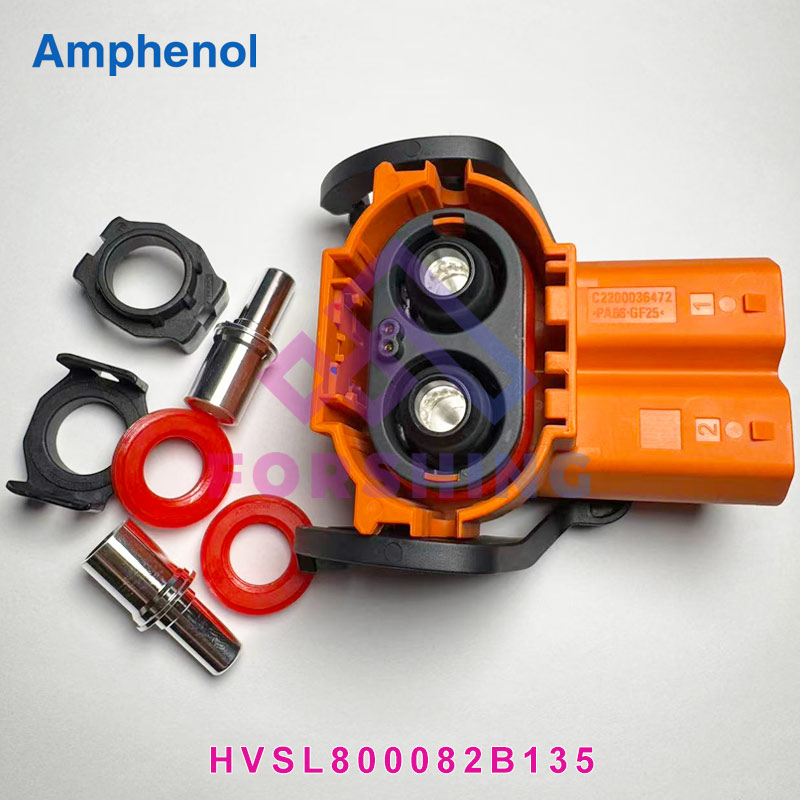

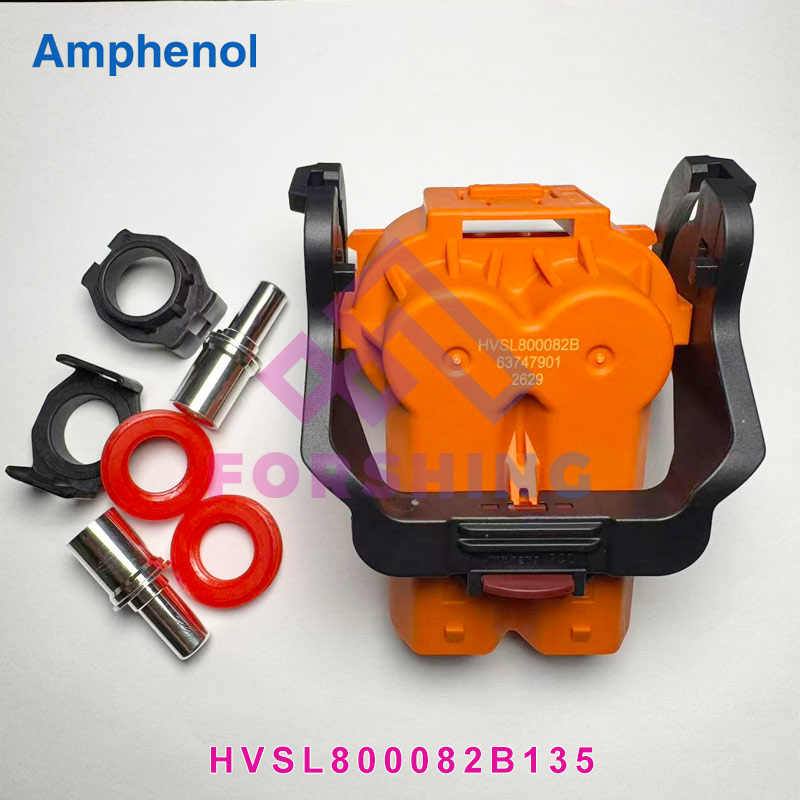

Amphenol HVSL800082B135 2-Pole Right Angle High Voltage EV Connector, 1000V 180A

The Amphenol HVSL800082B135 is a 2-pole right-angle high-voltage cable connector from the Excel|mate S HVSL800 Series, designed for electric and hybrid vehicle power systems.

Featuring an B-coded configuration, the HVSL800082B135 supports a rated voltage of 1000V AC/DC and a manufacturer-listed current rating of 180A at 40°C. The connector is designed for 35mm² cable and uses crimp termination to provide a reliable electrical connection in high-voltage wiring assemblies.

The connector incorporates an integrated High Voltage Interlock Loop (HVIL) to help monitor connector engagement and improve electrical safety. Its right-angle cable exit allows installation in space-constrained high-voltage systems, while the polarized design helps prevent incorrect mating.

The HVSL800082B135 features a durable orange thermoplastic housing, silver-plated copper-alloy contacts, and a lever-locking mechanism. It provides IP69K protection when properly assembled and mated, helping protect the connection from dust, water and harsh environmental conditions.

With an operating temperature range of -40°C to +125°C, the connector is suitable for electric vehicle battery systems, power distribution units, inverters, junction boxes and other high-voltage electrical equipment.

The Amphenol HVSL800082B135 combines high-current capability, integrated HVIL safety monitoring, and a compact right-angle configuration for demanding electric mobility applications.
